12V Golf Cart 6-EV-120 Sealed AGM Lead Acid Batteries 120ah Maintenance Free Passenger Mast Lift Battery

  • video
12V Golf Cart 6-EV-120 Sealed AGM Lead Acid Batteries 120ah Maintenance Free Passenger Mast Lift Battery
12V Golf Cart 6-EV-120 Sealed AGM Lead Acid Batteries 120ah Maintenance Free Passenger Mast Lift Battery


ItemHRESYS EV series 6‑EV‑120
Nominal voltage12 V
Rated capacity120 Ah @ 5 h rate (25°C)
Approx. weight38 kg
Dimensions (L×W×H)360 × 172 × 285 mm
TerminalFemale copper insert M8
Float charge voltage2.27–2.30 V/cell @ 25°C
Cycle life≥ 850 cycles @ 80% DOD
Operating temp.Discharge −20 to 55°C; Charge −20 to 45°C; Storage −20 to 45°C
Self‑dischargeNot specified
ApplicationsGolf car, electric tricycle, sightseeing bus, sanitation truck, etc.
Standards / CertsIEC 61056‑1, GB/T 22199, GB/T 19639‑1, JIS C870‑21; ISO9001/14001/OHSAS18001, CE
WarrantyNot specified

Using 6-EV-120 in a 48 V golf cart

  • Series wiring: connect four 12 V blocks in series to achieve 48 V nominal. Ensure all blocks are of the same brand, model, age, and state of charge before assembly.

  • Charging: use a charger matched to flooded lead‑acid with temperature compensation; recommended float is 2.27–2.30 V/cell @ 25°C when the pack is fully charged and on float duty.

  • Cycle life: expect ≥ 850 cycles @ 80% DOD (HRESYS data) under recommended charge/discharge profiles and ambient conditions.

  • Temperature: respect ambient ratings—discharge down to −20°C, charge between −20 and 45°C, and store between −20 and 45°C for best life and performance.

Safety and handling

  • Flooded lead‑acid batteries contain electrolyte; wear eye and skin protection and avoid spills.

  • Charge in a well‑ventilated area; never charge damaged or frozen batteries.

  • Keep terminals clean and tight; use insulated tools to prevent short circuits.

  • Equalize charges only as recommended by the manufacturer; avoid deep discharges and prolonged storage in a discharged state.

Products Description

Battery
PALMA Maintenance-free car battery

PALMA has initiated the production and sales of maintenance-free automotive batteries in China, becoming one of the earliest manufacturers to launch such products domestically. Leveraging advanced technological support from South Korea, PALMA rapidly secured a dominant position in China's high-end market and achieved global exports. To date, cumulative sales have exceeded 12 million units, with products widely applied in automobiles, generators, marine vessels, construction machinery, and agricultural equipment. Upholding core Korean production processes and quality control systems, PALMA consistently delivers exceptional quality, earning strong preference from suppliers and distributors.

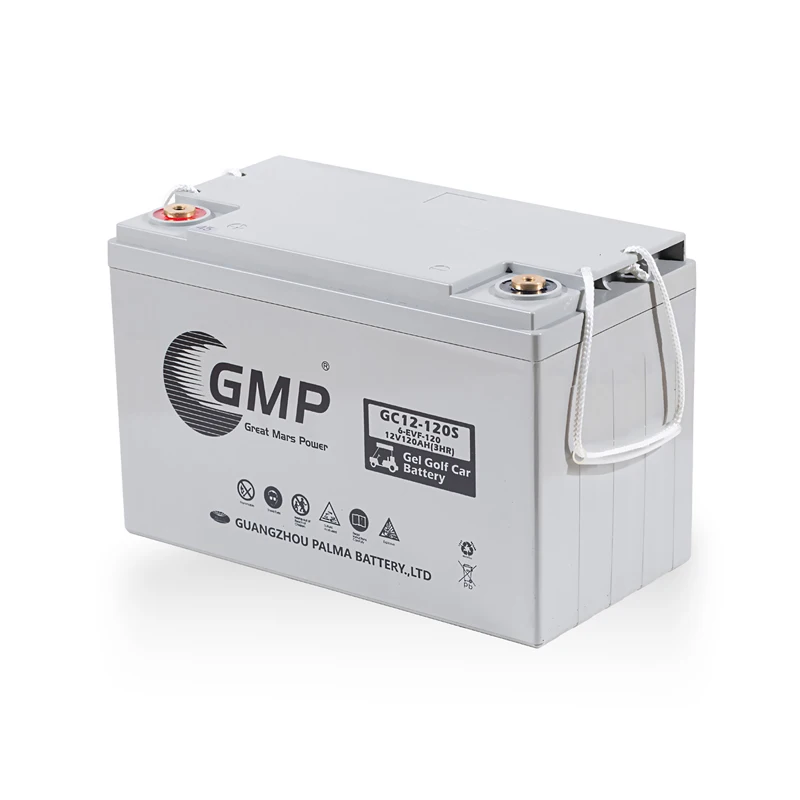

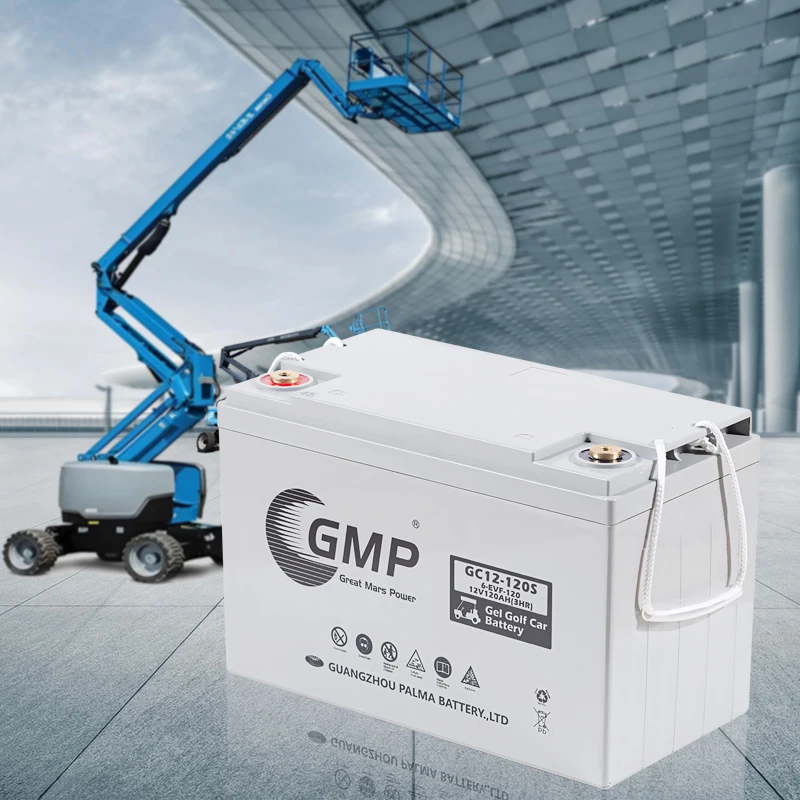

Product Image
6-EV-120
AGM
Battery
6-EV-120
Advanced manufacturing technology
AGM
Battery
Company Profile
6-EV-120
Company Profile

Guangzhou Palma Battery Co., Ltd. is located in Nansha District, Guangzhou, at the heart of the Greater Bay Area. Established in 1996 as a joint venture between South Korea's Pama World Group and Chinese investors, the company was acquired by Hong Kong capital in 2001. It ranks among China's earliest manufacturers of sealed lead-acid batteries.

The company's products are widely used in automotive, motorcycle, electric vehicle, marine, solar, wind, hydroelectric and nuclear power, UPS power supplies, EPS power supplies, security surveillance, medical equipment, cloud computing, big data, smart city system backup power, as well as electric toys, power tools, portable speakers, agricultural equipment, and construction machinery.

Seizing national development opportunities, the Palma brand steadfastly upholds its production philosophy of “high safety, high standards, and high quality.” It continuously innovates and expands its product portfolio to provide global customers with more comprehensive and convenient one-stop battery solutions.

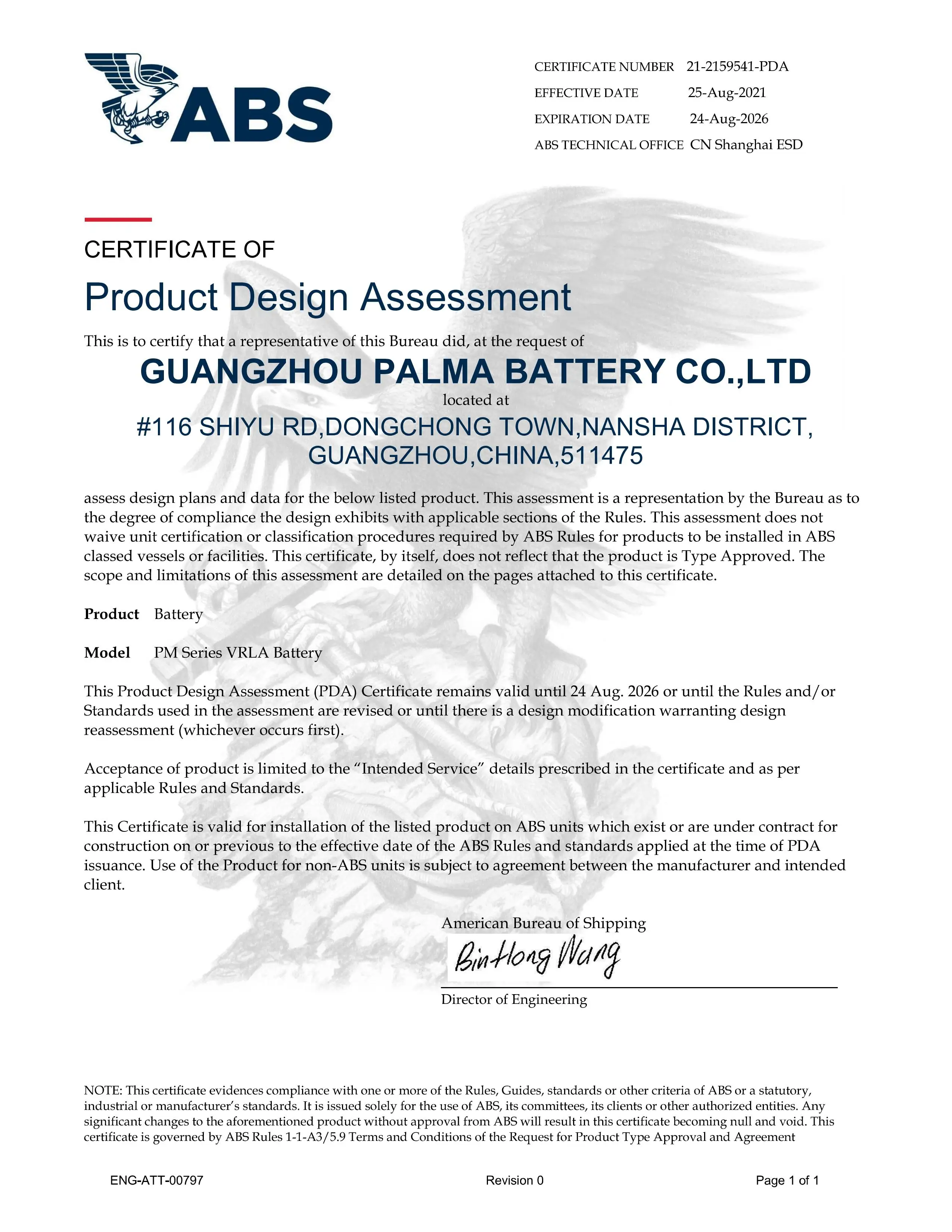

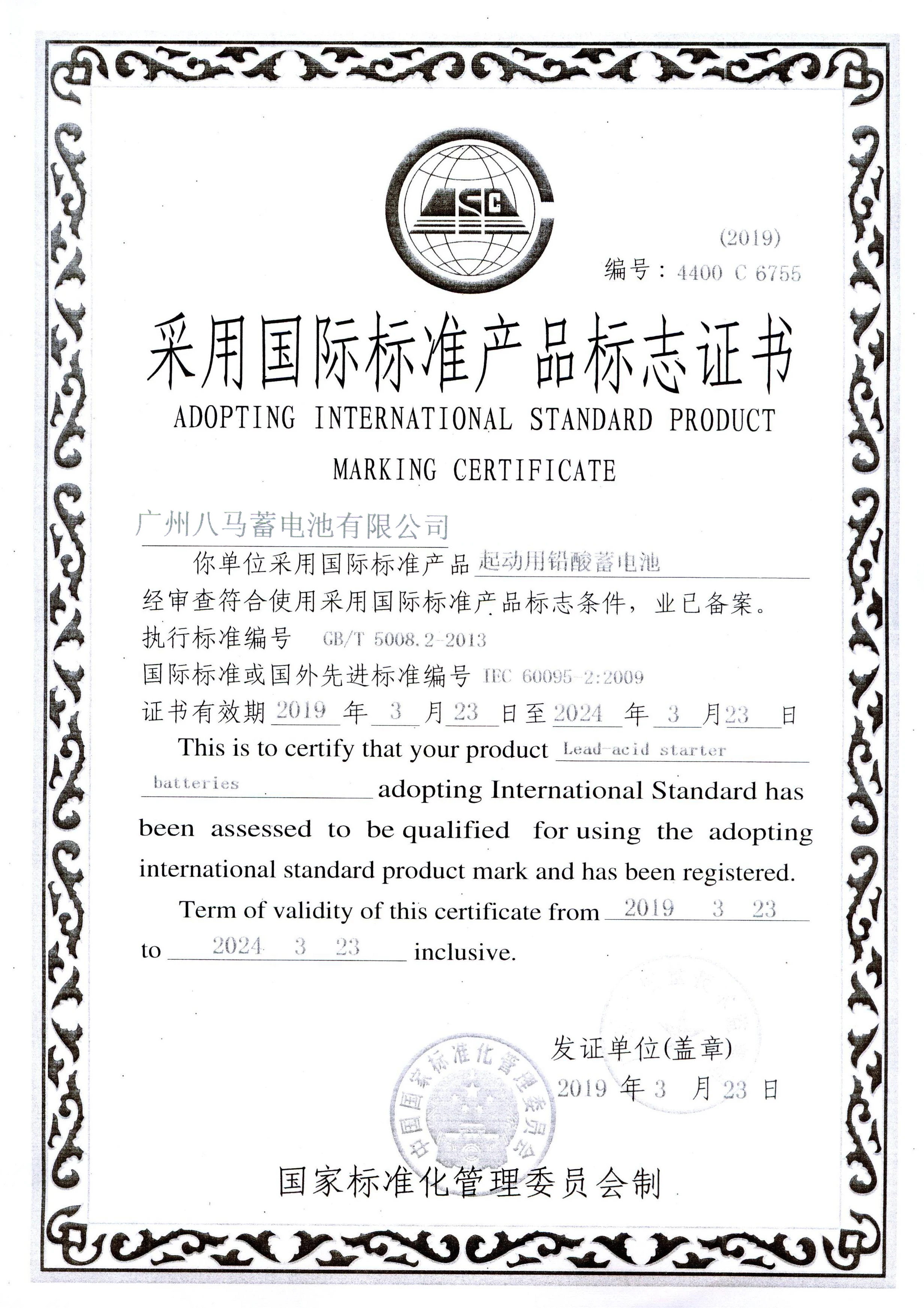

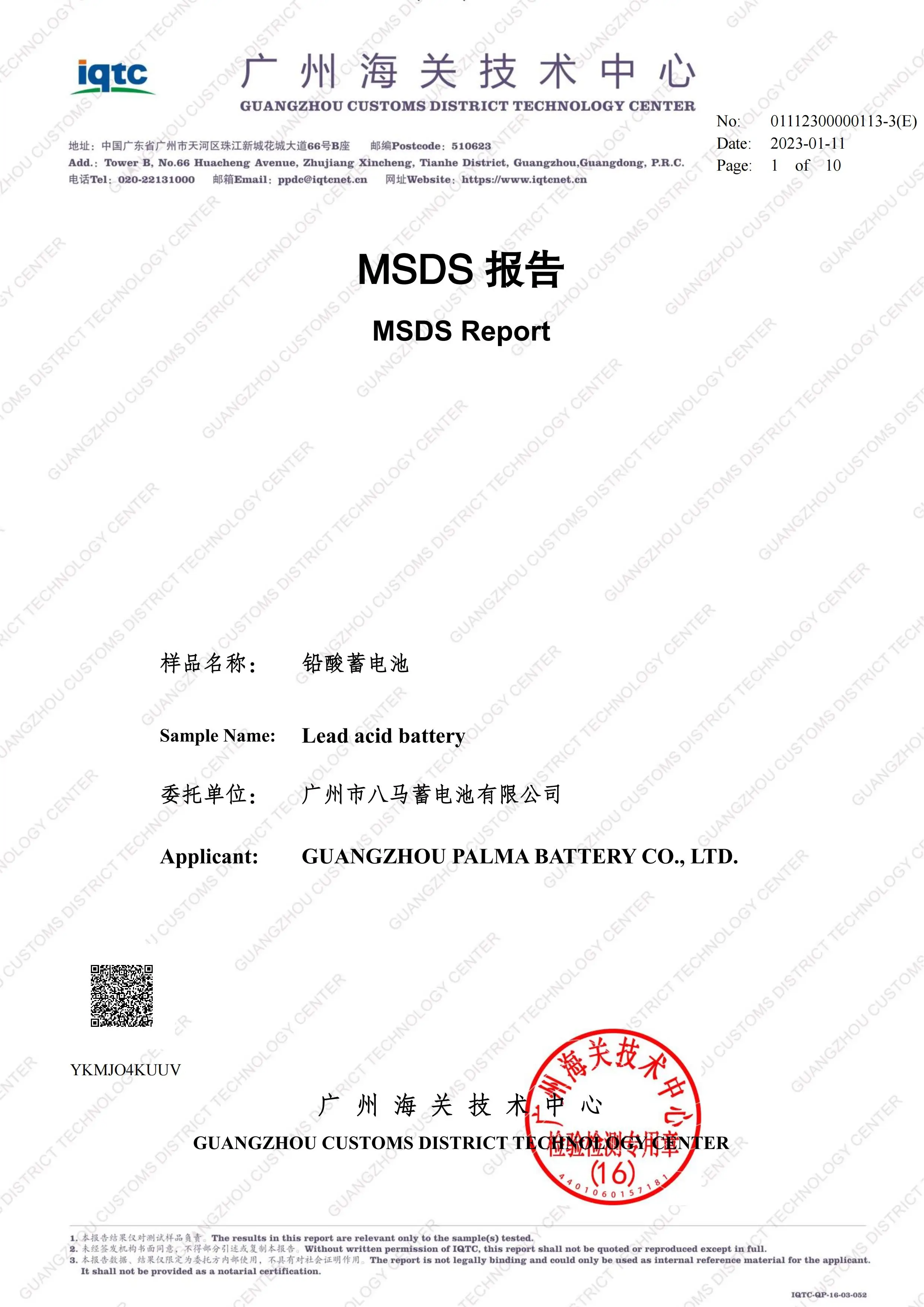

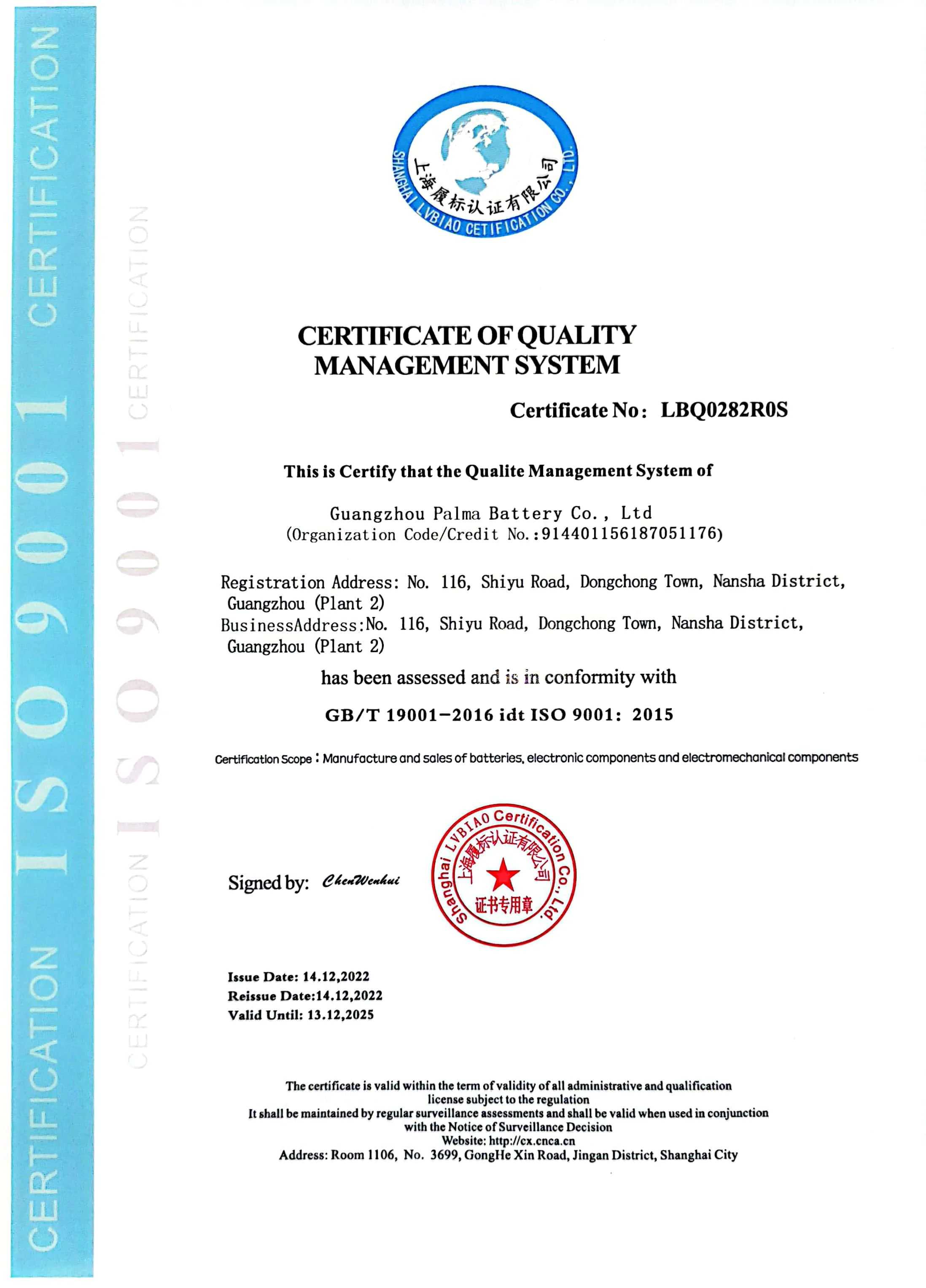

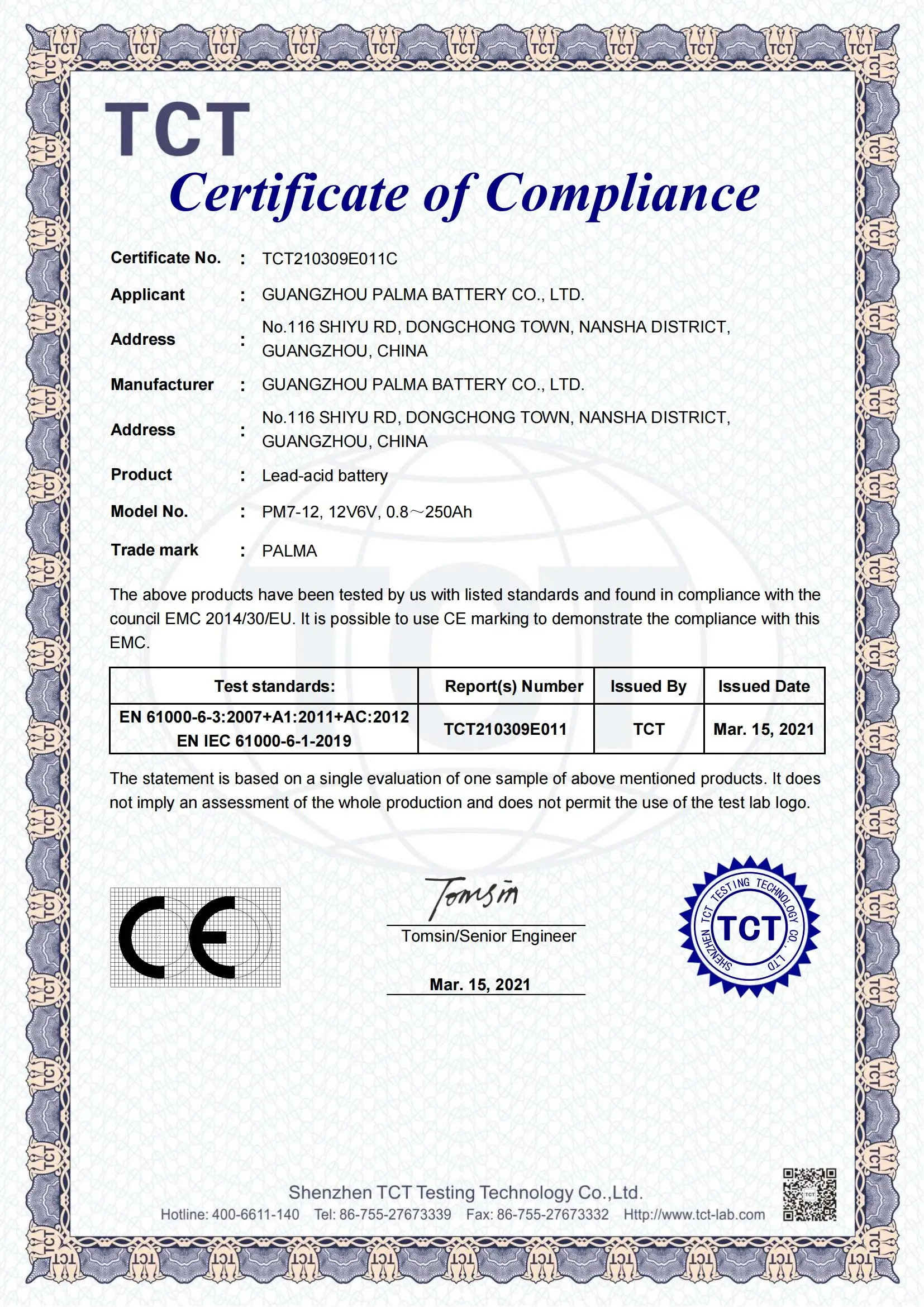

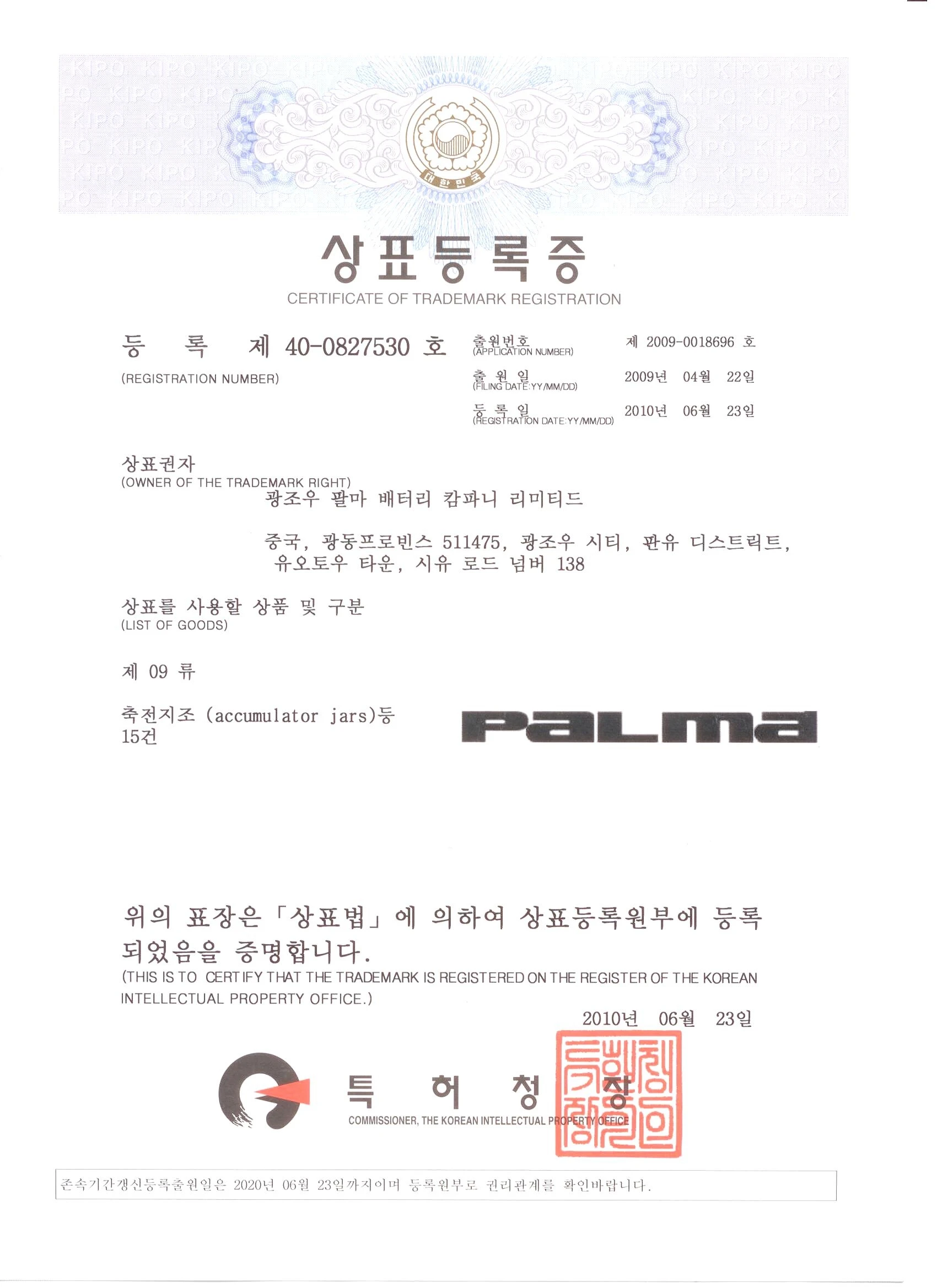

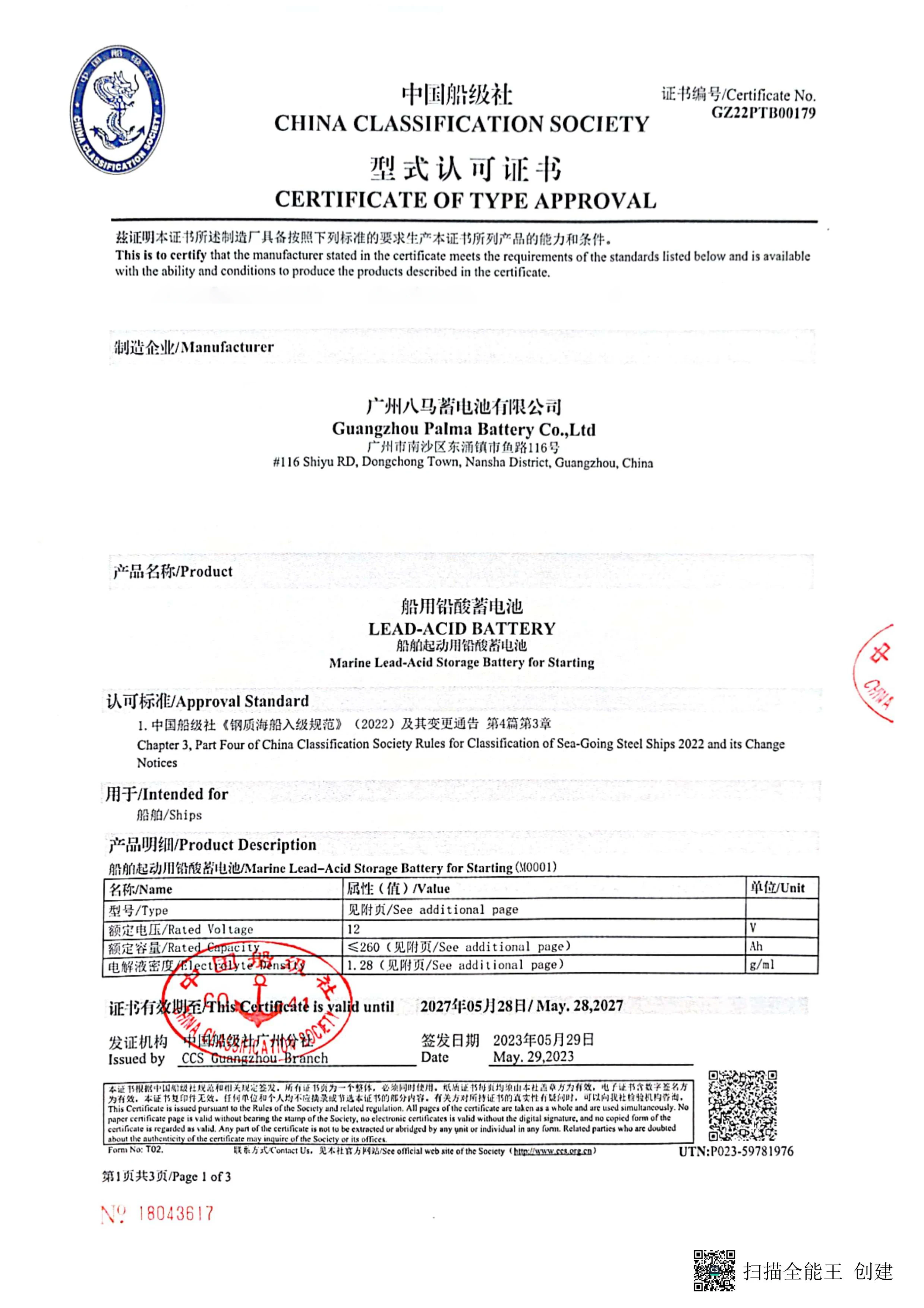

Certifications
AGM
Battery
6-EV-120
AGM
Battery
6-EV-120
AGM
Battery

FAQ

Q: To which regions worldwide are your company's batteries primarily exported?

A: Our primary markets span North America, South America, Europe, South Asia, and the Middle East.
